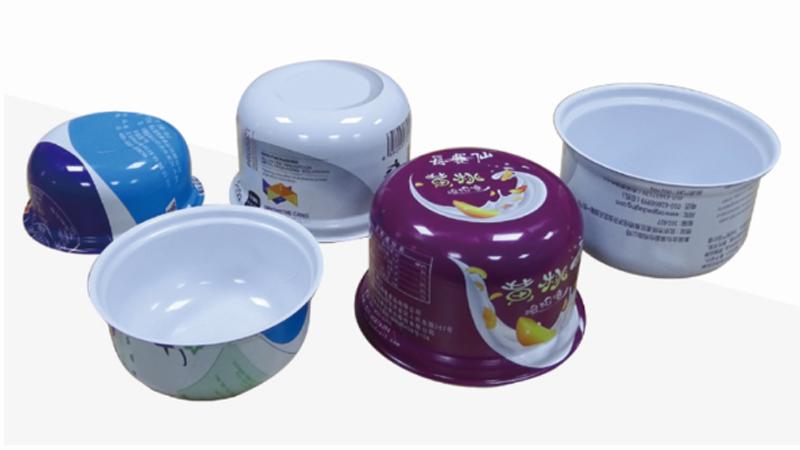

Examples
  • Stamping Presses Line
  • Stamping Presses Line

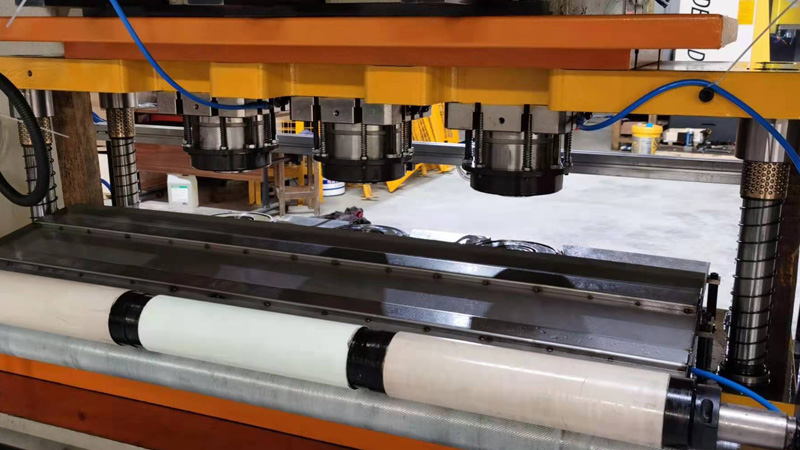

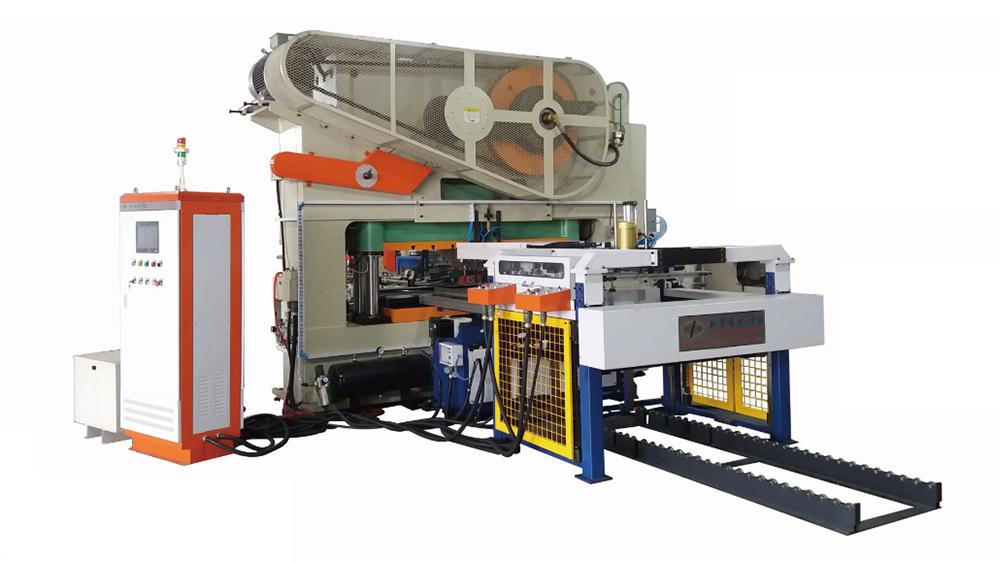

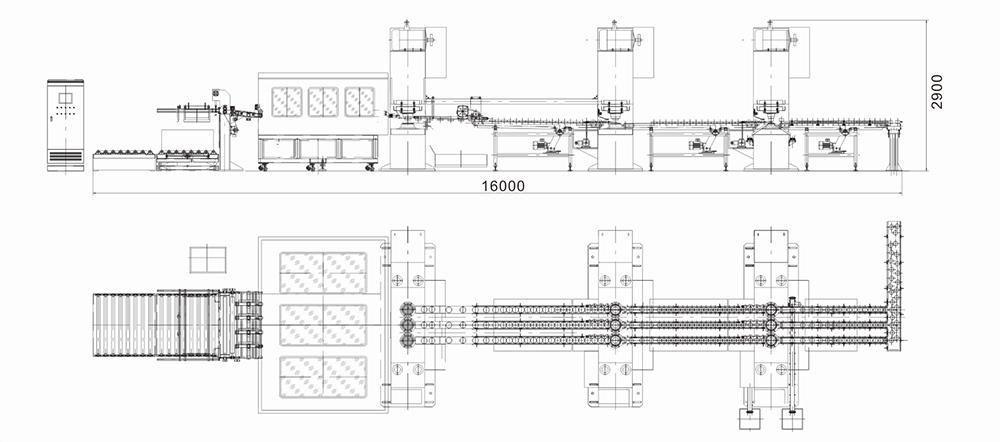

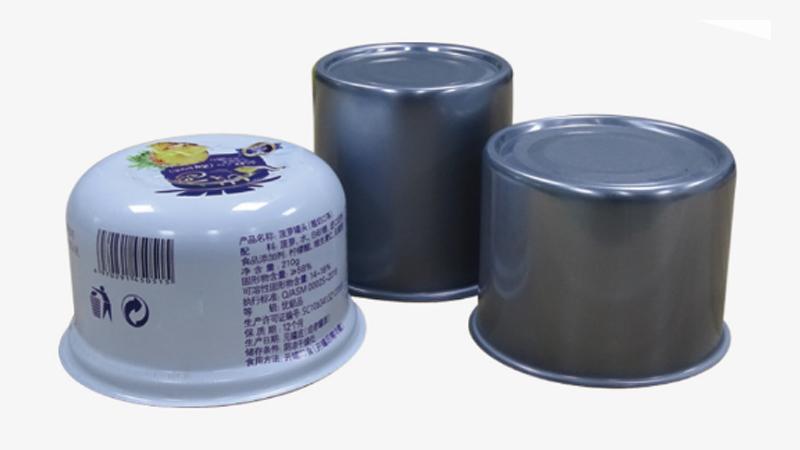

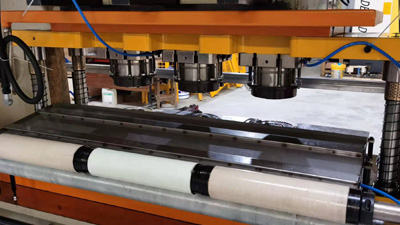

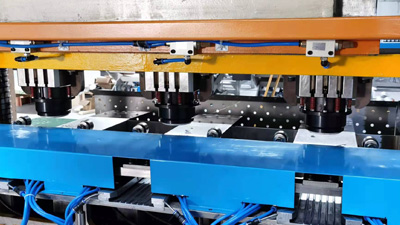

The stamping presses line is composed of a punch and automatic sheet feeding system. It is designed for manufacturing two-piece cans in a variety of materials, including iron, aluminum, and more. The punch features a high precision and stable operation, ensuring a production output of 200 cans/minute.

Stamping Presses Line

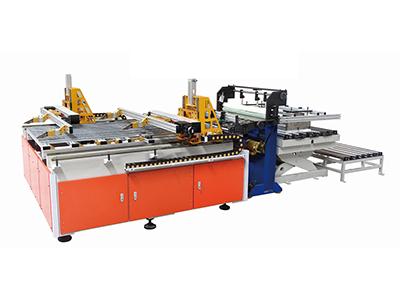

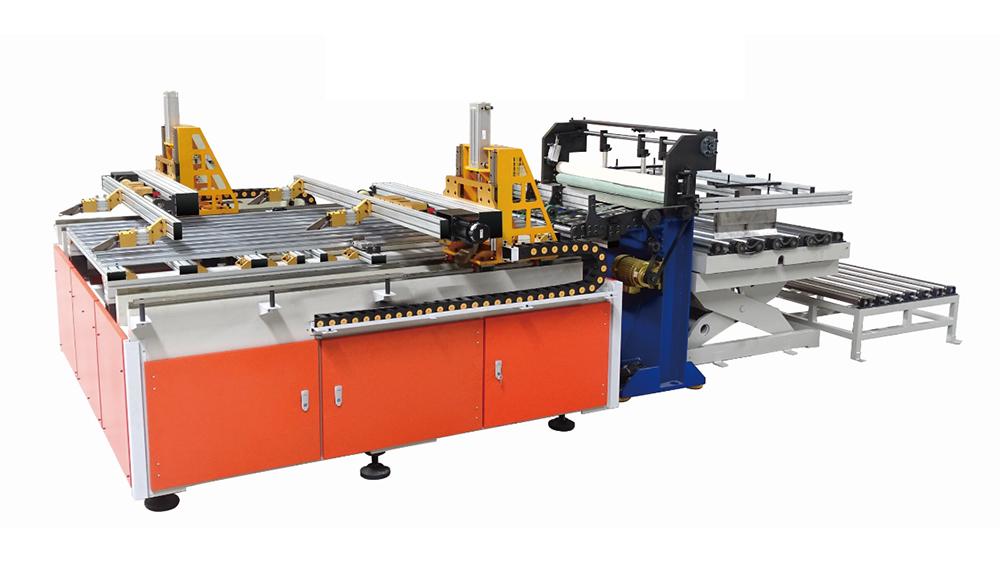

Automatic sheet feeder system, Drawn, Redrawn, Feeding system

  • Automatic Irregular Shape Can Body Making Machine
  • Automatic Irregular Shape Can Body Making Machine
  • Automatic Irregular Shape Can Body Making Machine
Features
  • The stamping press line is equipped with an OMRON control system and human to machine interface.
  • No stopping and no empty punching during production maximizes equipment utilization and productivity.
  • It is equipped with an OMRON servo motor and motion control module.
  • High quality ball screws and a linear guide rail ensure a stable, reliable operation.

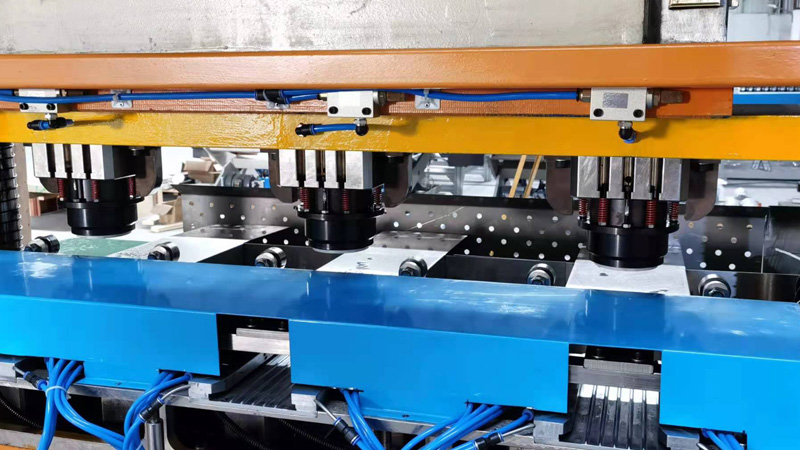

  • The mold is made of high-quality materials and equipped with 4 highly precise pillar die sets to ensure the mold’s high precision and long service life. The stamping press line features multiple molds, and is highly precise with a highly efficient performance.
Technical Specifications
Main specification Double clamps Single clamps
Sheet size 1100*1000 mm 1200*1000
Sheet stacking height max 350 mm max 350 mm
Feeding speed max 1400mm/s max 1000mm/s
Displacement precision 0.01mm 0.02mm
Feeding time 1-2sheet/s 2~3sheet/s
Available mold quantity 2~10 1~2
Power 12kw 7kw
Weight 5T 4T
