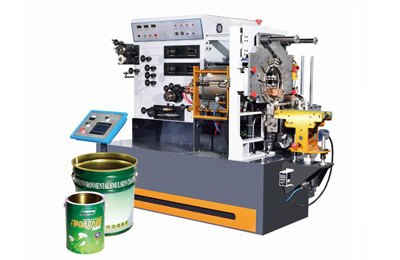

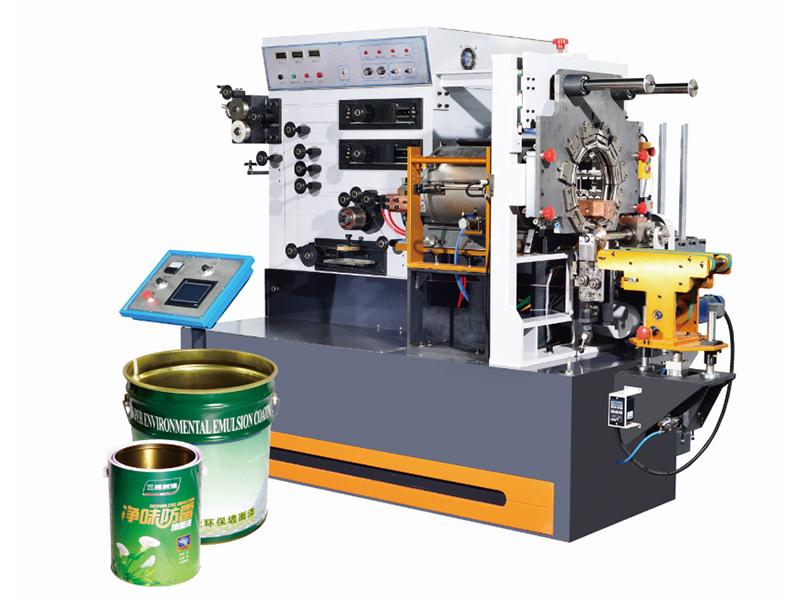

This automatic canbody welder completes rounding and welding processes used in the production of three-piece metal can bodies. It is especially suitable for welding pails. The production output of this series can be 30 cans/min or 55 cans/min depending on your individual material feeding methods.

Features
  • The automatic canbody welder is equipped with an easy to use interface, PLC system, and servo system.
  • Its static variable frequency power source provides stability and energy savings.
  • It is quick and convenient to change tools to manufacture different kinds of can types.
  • There is a front rounding structure or back rounding structure for you to choose from. The front rounding structure has the advantages of avoiding the long distance conveying of cans so as to prevent them from becoming stuck. The back rounding structure increases production output.
  • Mercury free welding device, remote control system and weld seam detection system are all optional.
Technical Specifications
Models NEW DODO-60DA NEW DODO-60DB
Production output 25-30cans/min 35-55cans/min
Welding speed 9-30m/min
Can inner diameter range Φ180～Φ380mm
Height range 100～550mm
Overlap width 0.5～1.0mm
Sheet thickness 0.21～0.40mm
Temper T2.5～DR8
Wire diameter Φ1.38～1.50mm
Electrical mains Three phase Voltage: 380V, Frequency: 50Hz , Power consumption: 25Kw
Welding frequency 80-260Hz
Cooling water >0.4MPa, 12-18℃, 40L/min
Air pressure and consumption >600L/min, >0.6MPa
