LT-M Series in-line can leakage tester for milk powder can

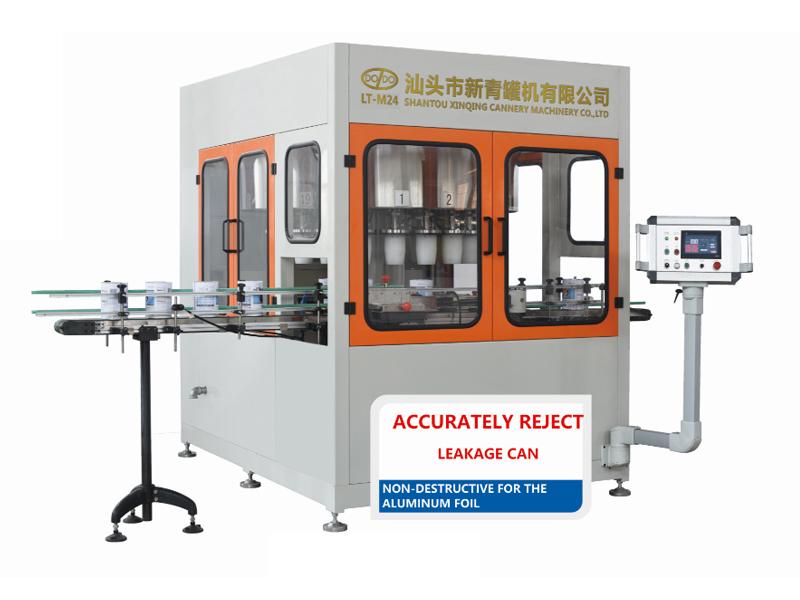

LT-M Series In-line Can Leakage Tester

The in-line can leakage tester is suitable for testing milk powder cans. After the empty can is sent to the detection station, the can’s open end will be sealed using a sealing disk, then filled with a compressed gas. A highly precise pressure sensor will read the first data, and after the pressure holding time, will read the second data set. The two data sets will be analyzed using the system, and any abnormal values indicate a defective can. Each features an independent test channel for each detection station to prevent airflow interference.

  • LT-M Series In-line Can Leakage Tester
  • LT-M Series In-line Can Leakage Tester
Features
  • Highly precise pressure sensor
  • Intelligent control system
  • Independent test channel
  • Non-destructive online testing
  • It is quick and easy to change between different tools for manufacturing different can types.
  • Food grade sealed chamber, air pipe and joint
Technical Specifications
Models LT-M20 LT-M24 LT-M36
Number of Heads 18 24 36
Production Speed Max.120cans/min Max.200cans/min Max.300cans/min
Can diameter range Φ99-Φ153
Can height range 100-240mm
Inspection Range up to 0.05mm
Air Consumption 400L/min 5bar 500L/min 5bar 800L/min 5bar
Power Consumption 6Kw 8Kw
